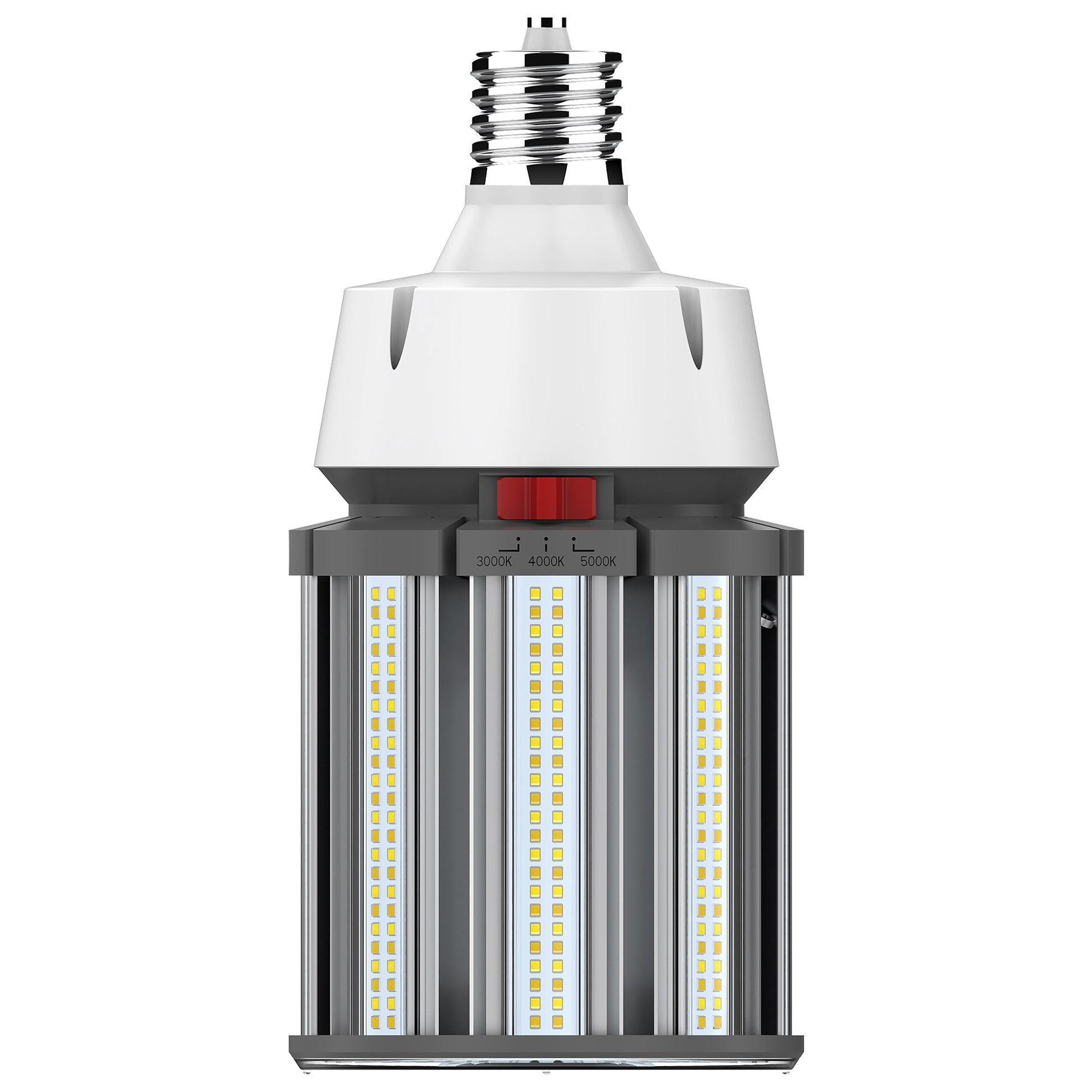

100-Watt LED HID Replacement - CCT Selectable - Type B - Ballast Bypass - Mogul Extended Base - 277-480Volt - Part #: S23168
Order Code: 0106147 Part #: S23168

Mfg Name: SATCO

Mfg Prod Description: 100W/LED/CCT/277-480V/EX39 #S23168

Order Code: 0106147

Product Specification

Additional Information

Additional Info :

ANSI EX39

Beam Characteristics

Beam Spread :

300DEG

Lens Style :

PLASTIC

Beam Angle :

300DEG

Color Characteristics

Color :

WARM TO COOL WHITE

CRI :

80CRI

CC Temp / Kelvin :

3000K/4000K/5000K

Electrical Properties

Voltage Group :

HIGH VOLTAGE

Volts :

277-480V

Watts :

100W

Power Factor :

0.9

Equivalent :

400W HID

Life

Life :

50000HR

Light Output Measurement

Dimmable :

DIMMABLE

Lumens :

13000L/14000L/13500L

Part Numbers & Ordering Information

BT Part# :

SAS23168

BT Description :

100W/LED/CCT/277-480V/EX39 #S23168

Mfg Ordering Code :

S23168

Mfg :

SATCO

Mfg Prod Description :

100W/LED/CCT/277-480V/EX39 #S23168

Tariff Code :

8541.40.20.00

BT Ordering Code :

0106147

GTIN :

00045923231681

UPC :

045923231681

UNSPSC :

39101628

Physical Characteristics

Shape :

CORNCOB

Diameter (mm/") :

5.12"

Overall Length (mm/") :

10.46"

Base :

Mogul Extended

Housing Color :

DARK GRAY

Ballast Bypass :

BALLAST-BYPASS (TYPE-B)

Min Operating Temp :

-22DEG F

Ratings & Recognition

Protection Rating :

IP64

Technical Details

Product Type :

LAMP / BULB

Technology :

LED / LIGHT EMITTING DIODE

Long Description :

100-Watt LED HID Replacement - CCT Selectable - Type B - Ballast Bypass - Mogul Extended Base - 277-480Volt
