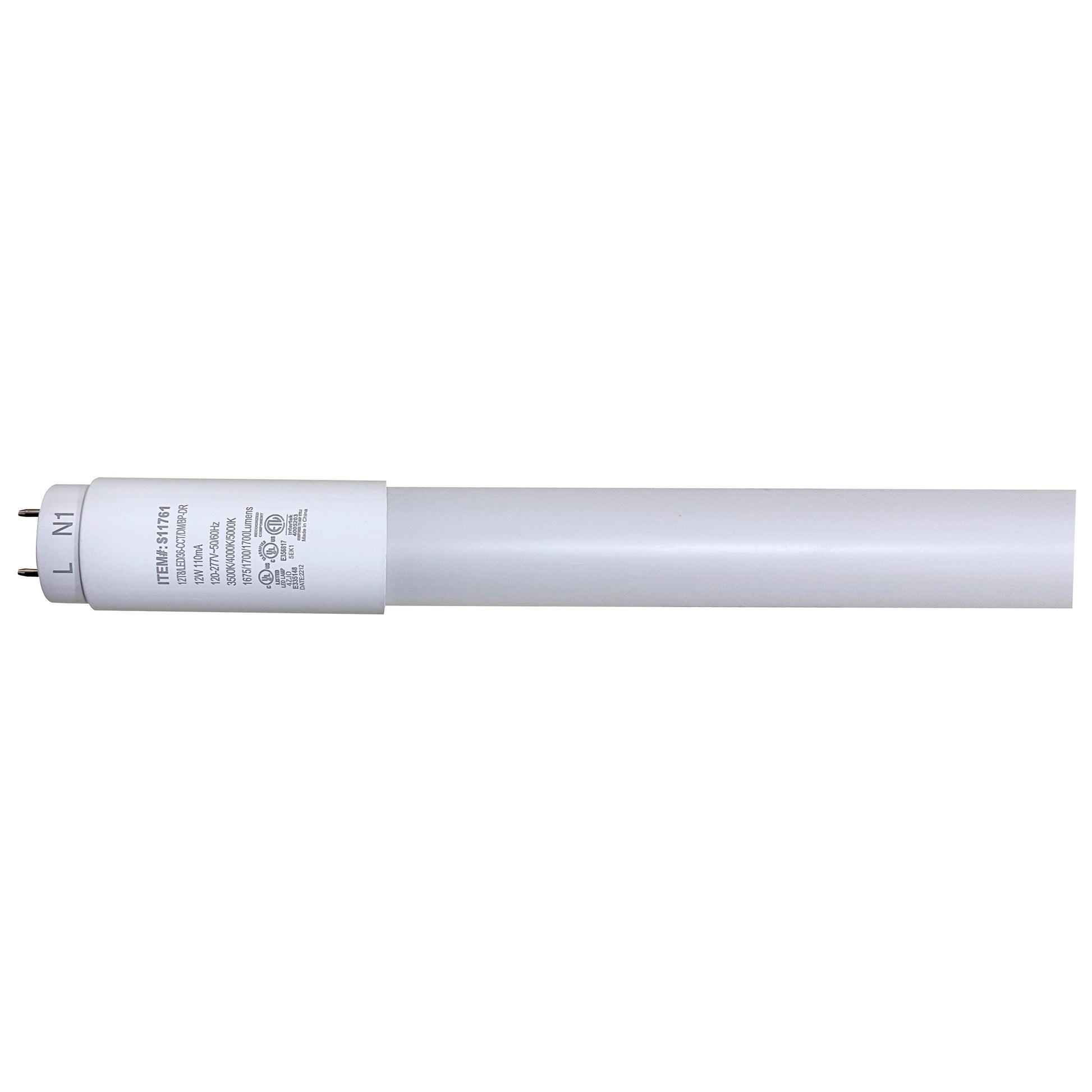

SATCO 12T8/LED/36-CCT/DM/BP-DR #S11761
SATCO 12T8/LED/36-CCT/DM/BP-DR #S11761
12W T8 LED CCT Select GU24 Base 50K Hours - Type A/B - BBP or Direct - 1/2-Ended Wiring - Glass PET - Part #: S11761
Mfg Name: SATCO
Mfg Prod Description: 12T8/LED/36-CCT/DM/BP-DR #S11761
Order Code: 0106646
Product Specification
Additional Information
Keywords :
LED T8 DIMMABLE
Beam Characteristics
Beam Spread :
180DEG
Lens Style :
GLASS
Beam Angle :
180DEG
Color Characteristics
CRI :
83
CC Temp / Kelvin :
3500/4000/5000K
Electrical Properties
Voltage Group :
LINE & HIGH VOLTAGES
Volts :
120-277V
Watts :
12W
Power Factor :
0.9
Equivalent :
32W FLUORESCENT
Lamp Information
Warranty (years) :
5 YEAR
Life
Life :
50000HR
Light Output Measurement
Dimmable :
Yes
Lumens :
1675L/1700L/1700L
Part Numbers & Ordering Information
BT Part# :
SAS11761
BT Description :
12T8/LED/36-CCT/DM/BP-DR #S11761
Mfg Ordering Code :
S11761
Mfg :
SATCO
Mfg Prod Description :
12T8/LED/36-CCT/DM/BP-DR #S11761
Tariff Code :
8541.40.20.00
BT Ordering Code :
0106646
Mfg Catalog Description1 :
PET COATED
GTIN :
00045923117619
UPC :
045923117619
UNSPSC :
39101628
Physical Characteristics
Shape :
T8
Diameter (mm/") :
1"
Finish :
WHITE
Overall Length (mm/") :
36"
Base :
G13
Ballast Compatible :
BALLAST REQUIRED (TYPE A) OR BALLAST BYPASS (TYPE B)
Ballast Bypass :
BALLAST REQUIRED (TYPE A) OR BALLAST BYPASS (TYPE B)
Min Operating Temp :
-4DEG F
Ratings & Recognition
Protection Rating :
DAMP LOCATION RATED
Technical Details
Product Type :
LAMP / BULB
Technology :
LED / LIGHT EMITTING DIODE
Long Description :
12W T8 LED CCT Select GU24 Base 50K Hours - Type A/B - BBP or Direct - 1/2-Ended Wiring - Glass PET
