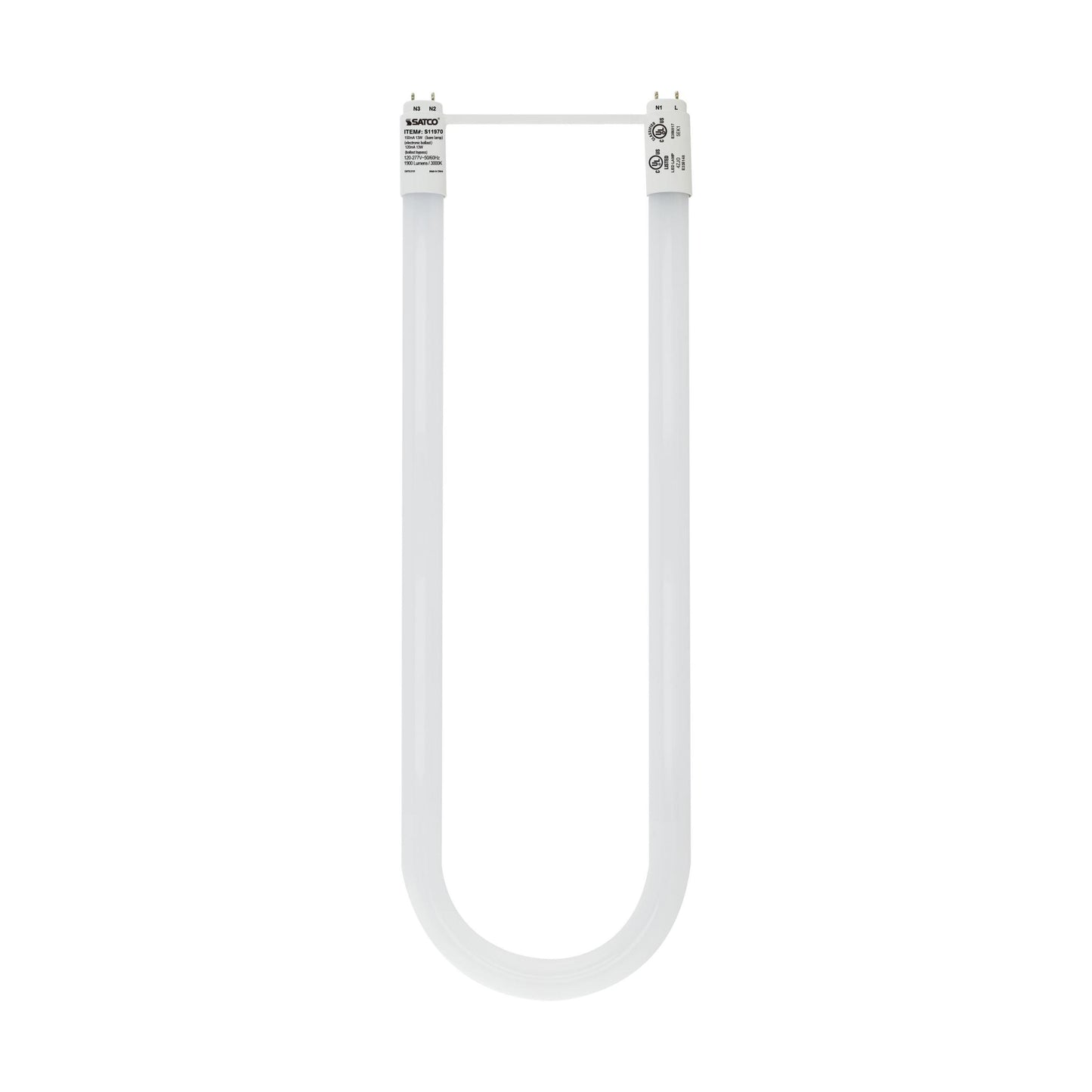

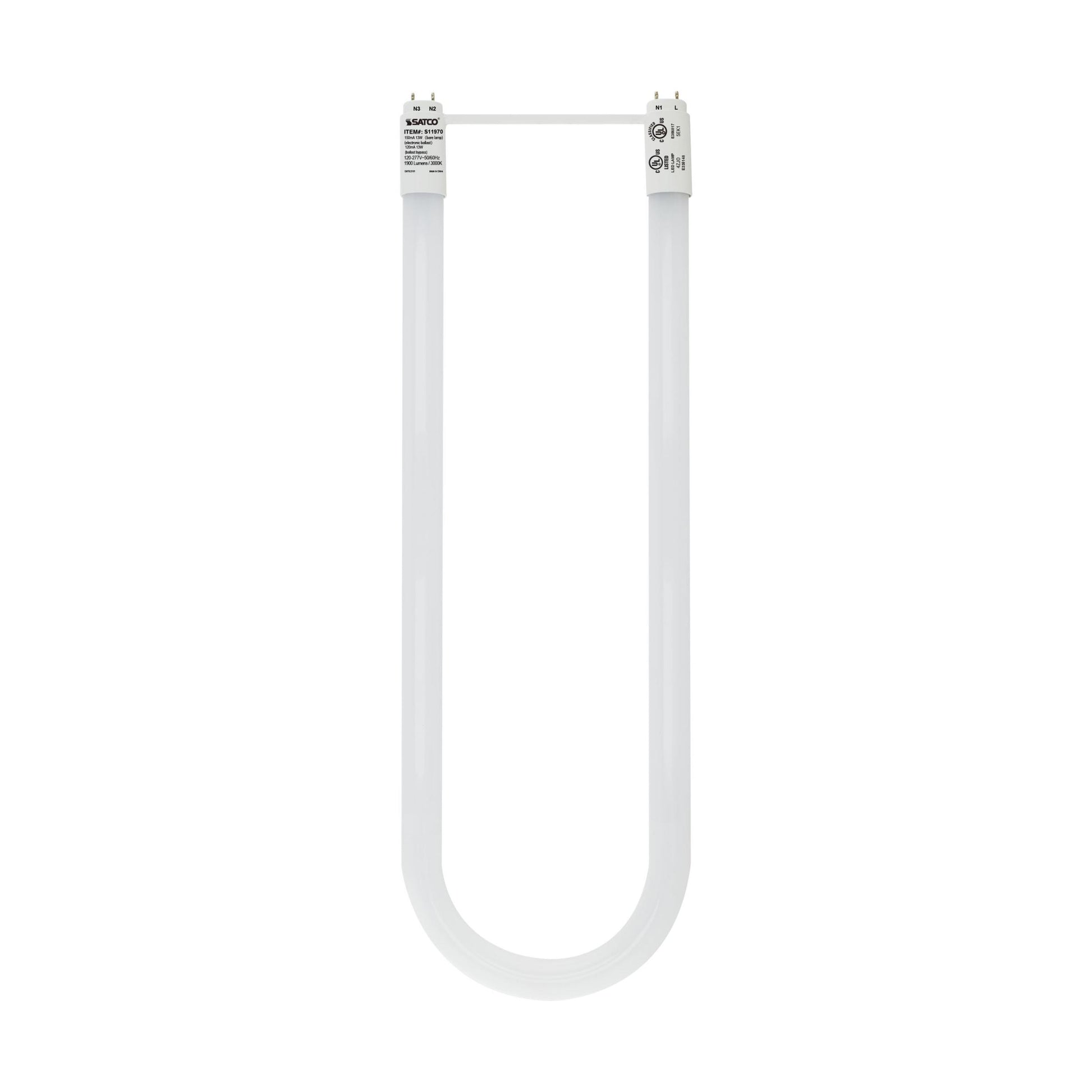

SATCO 13T8U6/LED/22.5-830/DUAL #S11970
SATCO 13T8U6/LED/22.5-830/DUAL #S11970
13W T8 U-Bend LED - 50K Hours - G13 Base - 1900L - 30K - Type A/B - Ballast Dependent or Ballast Bypass - 1 or 2-End Wiring - Part #: S11970
Mfg Name: SATCO
Mfg Prod Description: 13T8U6/LED/22.5-830/DUAL #S11970
Order Code: 0108131
Product Specification
Additional Information
Additional Info :
SHATTER-PROOF TYPE
Keywords :
LED U-BEND
Beam Characteristics
Beam Spread :
160DEG
Lens Style :
PLASTIC (PS)
Beam Angle :
160DEG
Color Characteristics
Color :
WARM WHITE
CRI :
83CRI
CC Temp / Kelvin :
3000K
Electrical Properties
Voltage Group :
LINE & HIGH VOLTAGES
Volts :
120-277V
Watts :
13W
Power Factor :
0.9
Equivalent :
32W FLUORESCENT
Life
Life :
50000HR
Light Output Measurement
Dimmable :
DIMMABLE
Lumens :
1900L
Part Numbers & Ordering Information
BT Part# :
SAS11970
BT Description :
13T8U6/LED/22.5-830/DUAL #S11970
Mfg Ordering Code :
S11970
Mfg :
SATCO
Mfg Prod Description :
13T8U6/LED/22.5-830/DUAL #S11970
Tariff Code :
8541.40.20.00
BT Ordering Code :
0108131
GTIN :
00045923119705
UPC :
045923119705
UNSPSC :
39101628
Physical Characteristics
Shape :
T8
Diameter (mm/") :
1.1"
Finish :
FROSTED
Overall Length (mm/") :
22.5"
Base :
Medium Bi Pin
Housing Color :
WHITE
Style :
U-BEND
Ballast Compatible :
BALLAST REQUIRED (TYPE A) OR BALLAST BYPASS (TYPE B)
Ballast Bypass :
BALLAST REQUIRED (TYPE A) OR BALLAST BYPASS (TYPE B)
Min Operating Temp :
-13DEG F
Ratings & Recognition
Protection Rating :
DAMP LOCATION RATED
Technical Details
Product Type :
LAMP / BULB
Technology :
LED / LIGHT EMITTING DIODE
Long Description :
13W T8 U-Bend LED - 50K Hours - G13 Base - 1900L - 30K - Type A/B - Ballast Dependent or Ballast Bypass - 1 or 2-End Wiring
