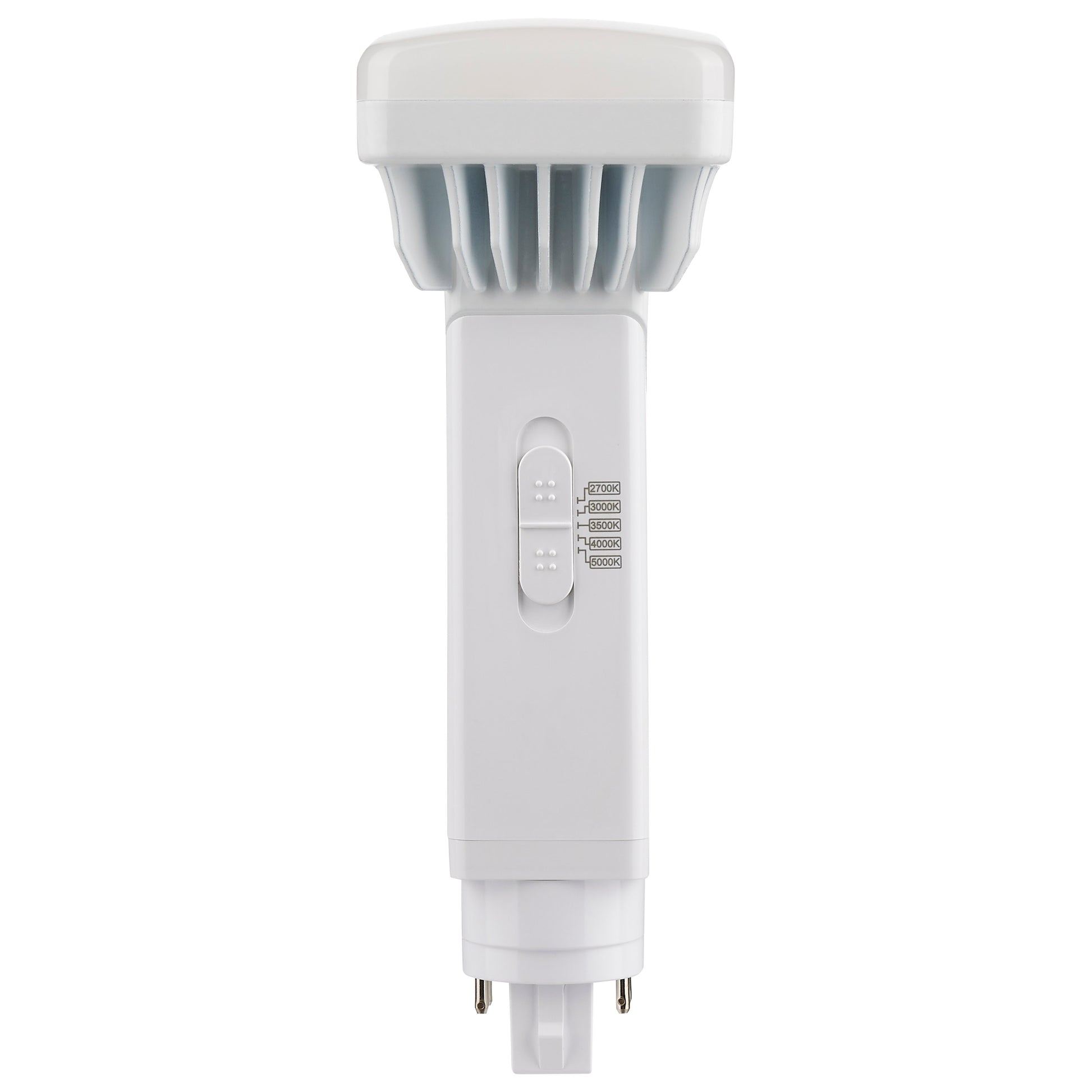

SATCO 16PL/LED/HV/5CCT/A+B/G24Q #S21412 S21412
SATCO 16PL/LED/HV/5CCT/A+B/G24Q #S21412 S21412
Mfg Name: SATCO
Mfg Prod Description: 16PL/LED/HV/5CCT/A+B/G24Q #S21412
Order Code: 0109260
Couldn't load pickup availability
Product Specification
Additional Information
Additional Info :
UNIVERSAL BURNING POSITION; BALLAST REQUIRED (TYPE A) OR BALLAST BYPASS (TYPE B)
Beam Characteristics
Beam Spread :
120DEG
Beam Angle :
120DEG
Color Characteristics
Color :
WARM WHITE TO NATURAL LIGHT
CRI :
82
CC Temp / Kelvin :
2700/3000/3500/4000/5000K
Electrical Properties
Volts :
120V-277V
Watts :
16W
Power Factor :
0.9
Equivalent :
42W FLUORESCENT
Lamp Information
Warranty (years) :
5 YEAR LIMITED
Life
Life :
50000HR
Light Output Measurement
Dimmable :
Only Dimmable with Compatible Dimming Ballasts
Part Numbers & Ordering Information
BT Part# :
SAS21412
BT Description :
16PL/LED/HV/5CCT/A+B/G24Q #S21412
Mfg Ordering Code :
S21412
Mfg :
SATCO
Mfg Prod Description :
16PL/LED/HV/5CCT/A+B/G24Q #S21412
Tariff Code :
8541.40.20.00
BT Ordering Code :
0109260
Mfg Catalog Description1 :
CCT SELECTABLE
GTIN :
00045923211645
UPC :
045923211645
UNSPSC :
39101628
Physical Characteristics
Shape :
PL
Diameter (mm/") :
2.36"
Finish :
FROSTED
Overall Length (mm/") :
6.76"
Base :
G24q (4-Pin)
Housing Color :
WHITE
Ballast Compatible :
BALLAST-COMPATIBLE (TYPE-A)
Ballast Bypass :
BALLAST-BYPASS (TYPE-B)
Min Operating Temp :
-20DEG C
Ratings & Recognition
Protection Rating :
DAMP LOCATION
Technical Details
Product Type :
LAMP / BULB
Long Description :
16 Watt PL 4-Pin LED - 1800 Lumens - G24q Base - CCT Selectable - White Finish - 120-277Volts
