SATCO 7W/LED/T5/830/BP #S11907 S11907
1 1

SATCO 7W/LED/T5/830/BP #S11907 S11907

SATCO 7W/LED/T5/830/BP #S11907 S11907

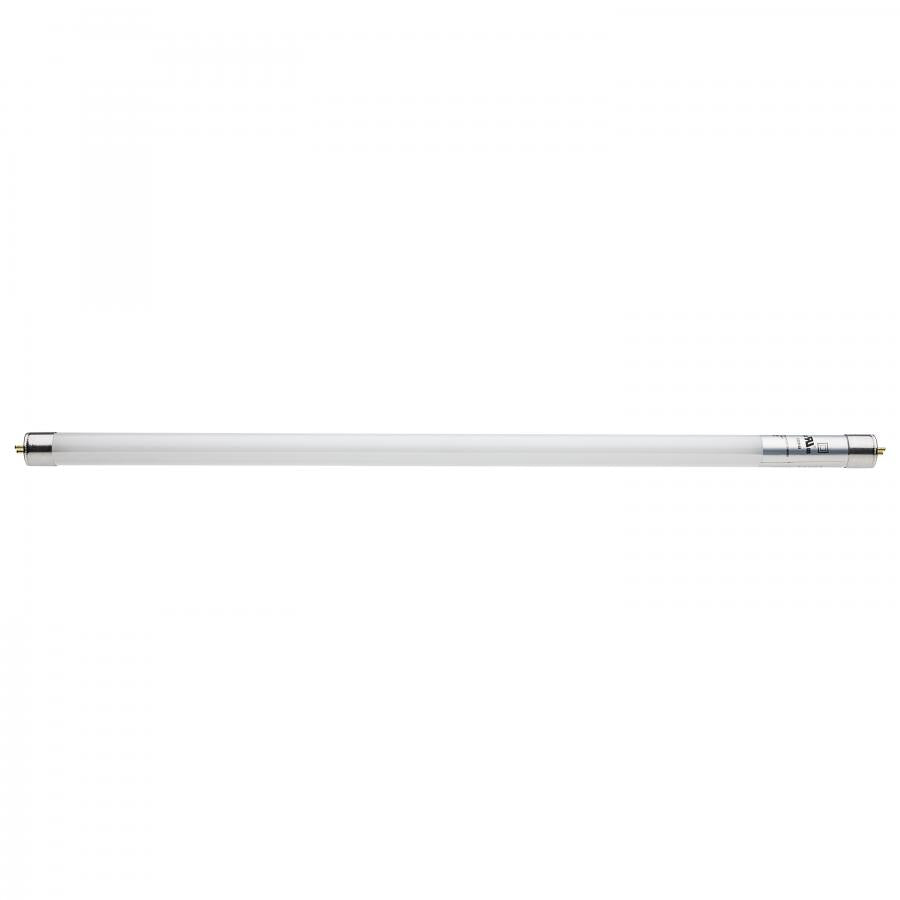

7 Watt T5 LED - Miniature Bi-pin Base - 3000K - 50000 Average Rated Hours - 700 Lumens - 120-277Volts - Part #: S11907
Order Code: 0106332 Part #: S11907

Mfg Name: SATCO

Mfg Prod Description: 7W/LED/T5/830/BP #S11907

Order Code: 0106332

Product Specification

Beam Characteristics

Beam Spread :

240DEG

Lens Style :

GLASS

Beam Angle :

240DEG

Color Characteristics

Color :

WARM WHITE

CRI :

82CRI

CC Temp / Kelvin :

3000K

Electrical Properties

Voltage Group :

LINE & HIGH VOLTAGES

Volts :

120-277V

Watts :

7W

Power Factor :

0.9

Equivalent :

13W FLUORESCENT

Lamp Information

Warranty (years) :

5 YEAR

Life

Life :

50000HR

Light Output Measurement

Dimmable :

No

Lumens :

700L

Part Numbers & Ordering Information

BT Part# :

SAS11907

BT Description :

7W/LED/T5/830/BP #S11907

Mfg Ordering Code :

S11907

Mfg :

SATCO

Mfg Prod Description :

7W/LED/T5/830/BP #S11907

Tariff Code :

8541.40.20.00

BT Ordering Code :

0106332

Mfg Catalog Description1 :

REPLACES F13T5/WW LAMPS

Mfg Catalog Description2 :

DIRECT WIRE 120-277V LINE VOLTAGE; DOUBLE ENDED WIRING

Mfg Catalog Description3 :

PET COATED

GTIN :

00045923119071

UPC :

045923119071

UNSPSC :

39101628

Physical Characteristics

Shape :

T5

Diameter (mm/") :

0.63"

Finish :

FROSTED

Overall Length (mm/") :

21"

Base :

Miniature Bi Pin

Ballast Bypass :

BALLAST-BYPASS (TYPE-B)

Min Operating Temp :

-13DEG F

Technical Details

Product Type :

LAMP / BULB

Technology :

LED / LIGHT EMITTING DIODE

Long Description :

7 Watt T5 LED - Miniature Bi-pin Base - 3000K - 50000 Average Rated Hours - 700 Lumens - 120-277Volts
