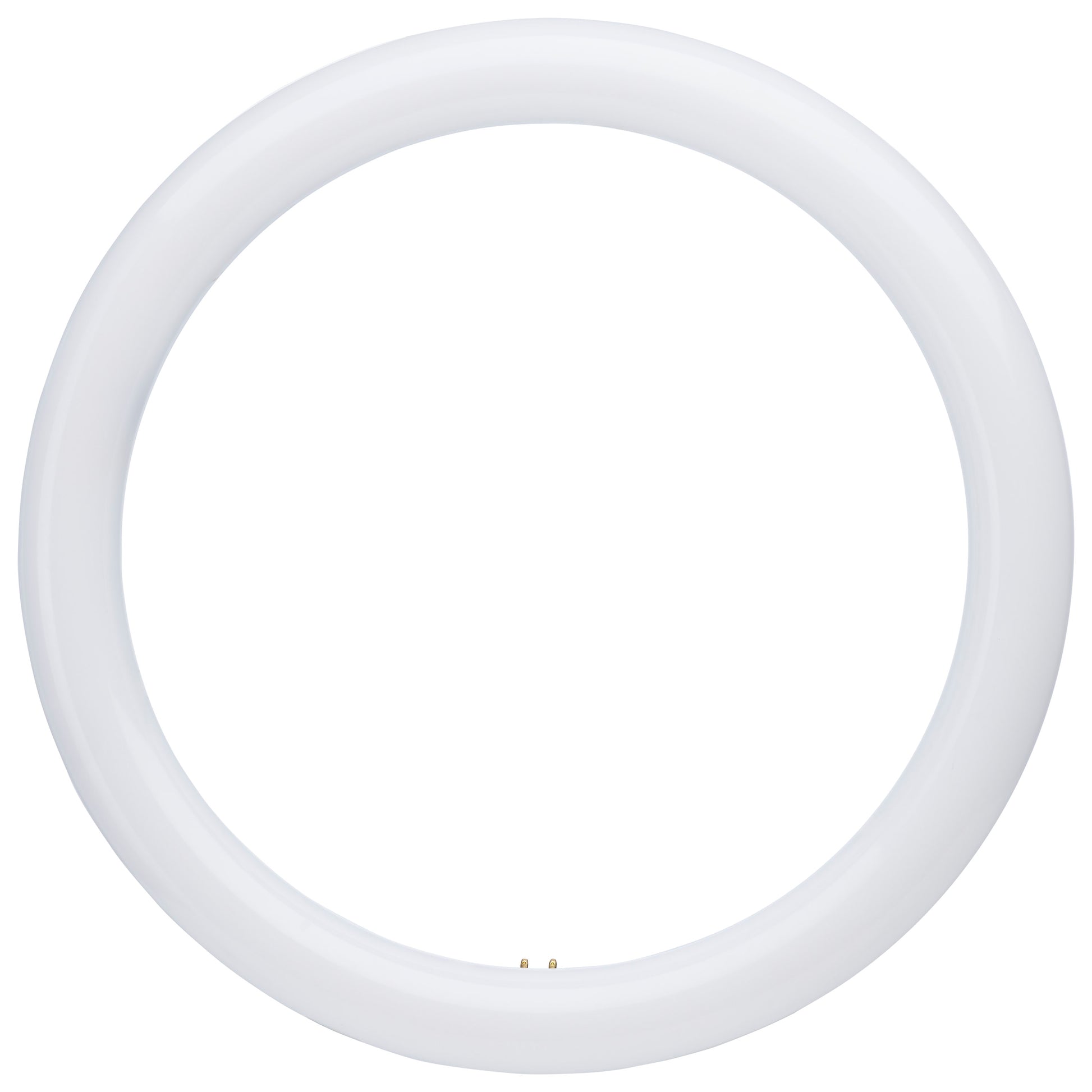

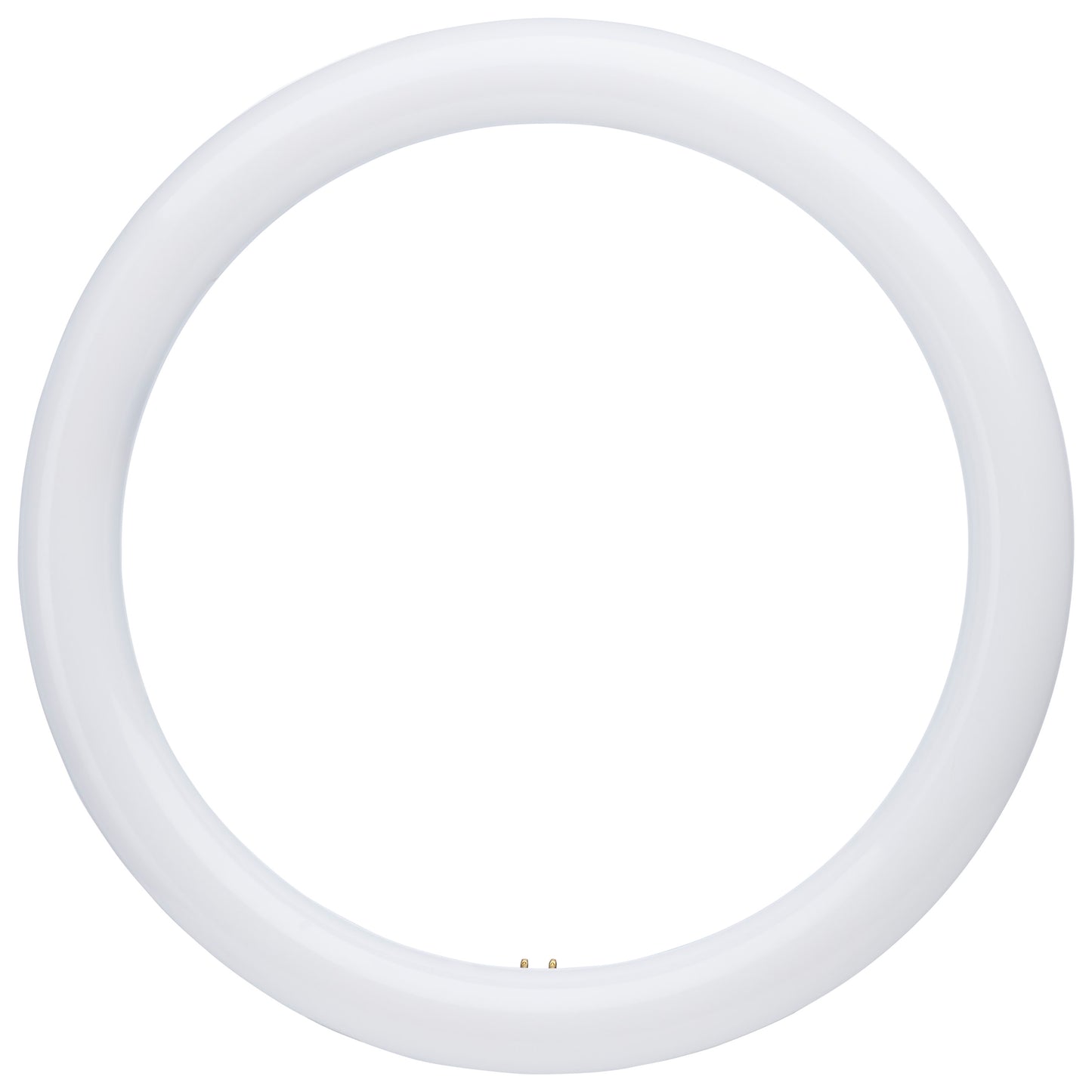

SATCO FC12T9/LED/CIR/CCT/DM/A-B #S16511 S16511
SATCO FC12T9/LED/CIR/CCT/DM/A-B #S16511 S16511
Mfg Name: SATCO
Mfg Prod Description: FC12T9/LED/CIR/CCT/DM/A-B #S16511
Order Code: 0109261
Couldn't load pickup availability
Product Specification
Additional Information
Additional Info :
BALLAST REQUIRED (TYPE A, ELECTRONIC ONLY) OR BALLAST BYPASS (TYPE B)
Beam Characteristics
Beam Spread :
180DEG
Beam Angle :
180DEG
Color Characteristics
Color :
SOFT WHITE TO DAYLIGHT
CRI :
80
CC Temp / Kelvin :
3000/4000/6500K
Electrical Properties
Volts :
120V-277V
Watts :
16W
Power Factor :
0.9
Equivalent :
32W FLUORESCENT
Lamp Information
Warranty (years) :
5 YEAR LIMITED
Life
Life :
50000HR
Light Output Measurement
Dimmable :
Non-Dimmable
Lumens :
1850L/2000L/1950L
Part Numbers & Ordering Information
BT Part# :
SAS16511
BT Description :
FC12T9/LED/CIR/CCT/DM/A-B #S16511
Mfg Ordering Code :
S16511
Mfg :
SATCO
Mfg Prod Description :
FC12T9/LED/CIR/CCT/DM/A-B #S16511
Tariff Code :
8541.40.20.00
BT Ordering Code :
0109261
Mfg Catalog Description1 :
LED CIRCLINE; CCT SELECTABLE
GTIN :
00045923165115
UPC :
045923165115
UNSPSC :
39101628
Physical Characteristics
Shape :
T9
Diameter (mm/") :
1.2"
Finish :
FROSTED
Overall Length (mm/") :
11.82"
Base :
G10q (4-Pin)
Housing Color :
WHITE
Min Operating Temp :
-20DEG C
Technical Details
Product Type :
LAMP / BULB
Long Description :
FC12T9/LED/CIR/CCT/DM/A-B #S16511
