TCP 3U 32 42W PL UNIV 35K #LPLU32A2535K LPLU32A2535K
1 1

TCP 3U 32 42W PL UNIV 35K #LPLU32A2535K LPLU32A2535K

TCP 3U 32 42W PL UNIV 35K #LPLU32A2535K LPLU32A2535K

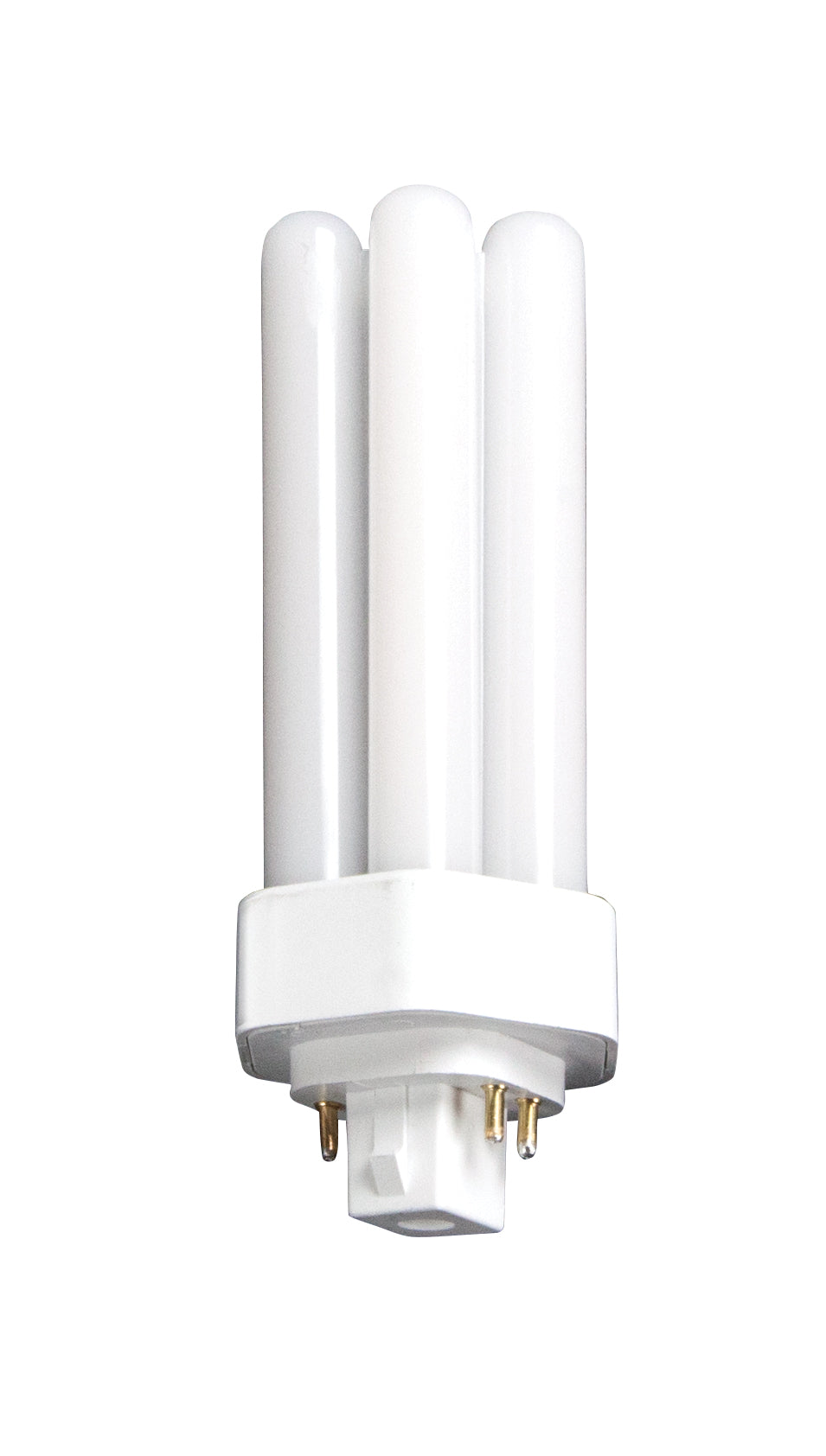

LED PL Lamp, 16W, 42W Equivalent, 3500K, 1500LU, Non Dimmable, 25,000 Hours, Suitable for Damp Locations, 360 Degree Beam Angle, White - Part #: LPLU32A2535K
Order Code: 0106253 Part #: LPLU32A2535K

Mfg Name: TCP

Mfg Prod Description: 3U 32 42W PL UNIV 35K #LPLU32A2535K

Order Code: 0106253

Product Specification

Beam Characteristics

Beam Spread :

110DEG

Color Characteristics

Color :

COOL WHITE

CRI :

80CRI

CC Temp / Kelvin :

3500K

Electrical Properties

Voltage Group :

LINE & HIGH VOLTAGES

Volts :

120-277V

Watts :

16W

Power Factor :

0.99

Equivalent :

32-42W CFL

Lamp Information

Warranty (years) :

5 YEAR

Life

Life :

25000H

Light Output Measurement

Dimmable :

NOT DIMMABLE

Part Numbers & Ordering Information

BT Part# :

BTTCPLPLU32A253

BT Description :

3U 32 42W PL UNIV 35K #LPLU32A2535K

Mfg Ordering Code :

LPLU32A2535K

Mfg :

TCP

Mfg Prod Description :

3U 32 42W PL UNIV 35K #LPLU32A2535K

Tariff Code :

8541.40.20.00

BT Ordering Code :

0106253

GTIN :

00762148305675

UPC :

762148305675

UNSPSC :

39101628

Physical Characteristics

Shape :

PL

Diameter (mm/") :

1.5"

Overall Length (mm/") :

5.5"

Base :

G24Q / 4-PIN

Min Operating Temp :

-30 DEG C

Technical Details

Product Type :

LAMP / BULB

Technology :

LED / LIGHT EMITTING DIODE

Long Description :

LED PL Lamp, 16W, 42W Equivalent, 3500K, 1500LU, Non Dimmable, 25,000 Hours, Suitable for Damp Locations, 360 Degree Beam Angle, White
